61299 - IN-SAND™ CNC Sander From Amana Tool

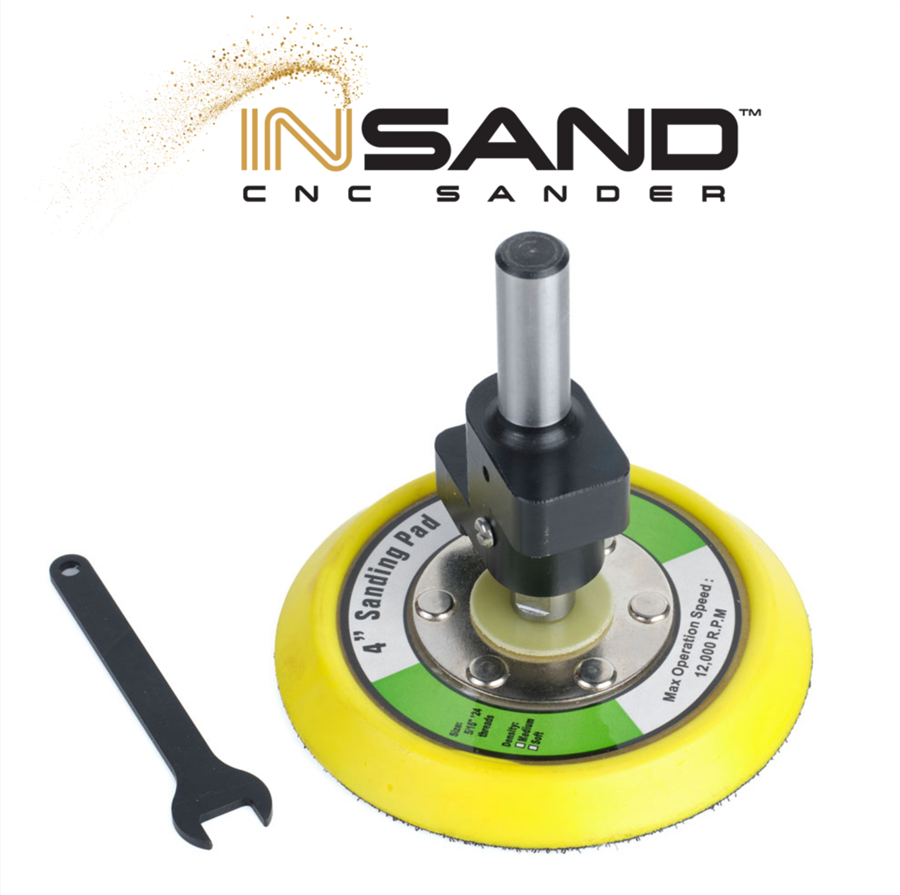

61299 IN-SAND CNC Sander From Amana Tool

Alternative Views:
List Price: $489.00
USRT Price: $445.00
Save $44.00!


Product Code: 61299
Qty:

Description

The IN-SAND™ CNC Sander is designed to use with any 4” Sanding disc (Not included) according with the finish needed.
  • Industrial quality
  • 3.50 orbit value

  • The Lower grit numbers, the more course the disc will be, and the higher the grit, the finer it will be.
  • 40 grit: Coarse
  • 80 grit: Medium
  • 100 grit: Medium
  • 120 grit: Fine
  • 220 grit: Fine
  • 440 grit: Extra Fine
  • Knowing which grit sandpaper to use depends on the type of job and what step in the process you are in.

Set Up at the CNC Machine.

  • Check the tool Flexibility movement it should be about 3mm.
  • Install the IN-SAND™ at the tool holder or Directly at the Spindle.
  • You can measure the IN-SAND™ on the machine measuring device or simply update manually the tool length from pad surface, The diameter should be 4-11/32” (110mm) and not 3-15/16” (100mm) of the orbital movement of the pad.
  • The sanding power is defined by the “Milling Depth” the max depth is 1/8” (3.17mm) but our recommendation is 8,000 RPM and milling depth of 0.3 – 0.5mm.
  • Use the Option of “Milling Pockets” to control the tool path.
